تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: Tankii

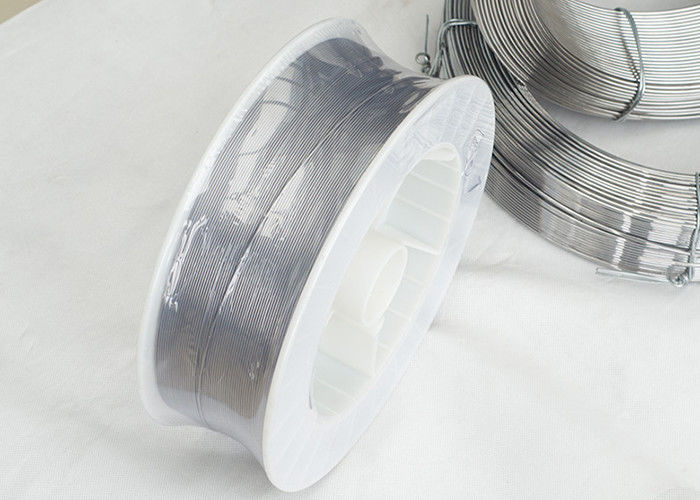

رقم الموديل: ER304
شروط الدفع والشحن
الحد الأدنى لكمية: 15 كجم
تفاصيل التغليف: صندوق كرتون
وقت التسليم: 10 أيام
شروط الدفع: L/C، D/A، D/P، T/T، Western Union
القدرة على العرض: 10Ton / شهر
| تكوين أسلاك اللحام من الفولاذ المقاوم للصدأ TIG و MIG | ||||||||||
| YB5092-2005 | AWS | تكوين كيميائي % | ||||||||
| ج | نعم | م | (ب) | S | سي سي | نـي | (مو) | |||
| H08Cr20Ni9Mn7Si | ER307Si | 0.075 | 0.78 | 6.70 | 0.022 | 0.010 | 19.8 | 8.80 | ||
| H06Cr21Ni10 | ER308 | 0.045 | 0.45 | 1.90 | 0.020 | 0.009 | 20.8 | 9.80 | ||
| H00Cr21Ni10 | ER308L | 0.02 | 0.32 | 1.90 | 0.011 | 0.006 | 20 | 10.2 | ||
| H06Cr21Ni10Si | ER308Si | 0.045 | 0.85 | 1.50 | 0.022 | 0.010 | 20.8 | 9.80 | ||
| H06Cr24Ni13 | ER309 | 0.06 | 0.45 | 1.90 | 0.019 | 0.009 | 24.3 | 13.20 | ||
| H06Cr24Ni13Si | ER309Si | 0.06 | 0.79 | 1.95 | 0.019 | 0.009 | 24.7 | 13.20 | ||
| H03Cr24Ni13 | ER309L | 0.020 | 0.42 | 1.80 | 0.020 | 0.010 | 24.8 | 13.2 | ||
| H03Cr24Ni13Si | ER309LSi | 0.018 | 0.80 | 1.70 | 0.020 | 0.010 | 23.5 | 13.50 | ||
| H21Cr16Ni35 | ER330 | 0.20 | 0.38 | 1.50 | 0.022 | 0.010 | 16.5 | 34.5 | ||
| H06Cr19Ni12Mo2 | ER316 | 0.04 | 0.40 | 1.90 | 0.020 | 0.010 | 19.5 | 11.80 | 2.30 | |
| H06Cr19Ni12Mo2Si | ER316Si | 0.05 | 0.70 | 1.92 | 0.020 | 0.010 | 19.5 | 11.80 | 2.30 | |
| H03Cr19Ni12Mo2 | ER316L | 0.019 | 0.38 | 1.80 | 0.018 | 0.010 | 19.8 | 12.20 | 2.50 | |
| H03Cr19Ni12Mo2Si | ER316LSi | 0.06 | 0.85 | 1.70 | 0.022 | 0.010 | 18.8 | 12.60 | 2.40 | |
| H03Cr17Ni14Mo3 | ER317L | 0.02 | 0.38 | 1.80 | 0.020 | 0.010 | 18.8 | 13.80 | 3.60 | |
| H08Cr19Ni12Mo2Nb | ER318 | 0.06 | 0.42 | 1.50 | 0.022 | 0.010 | 18.5 | 11.80 | 2.30 | |
| H07Cr20Ni34Mo2Cu3Nb | ER320 | 0.06 | 0.40 | 1.00 | 0.022 | 0.010 | 19.8 | 33.3 | 2.80 | ن.ب.0.7 |
| H02Cr20Ni34Mo2Cu3Nb | ER320L | 0.018 | 0.33 | 1.50 | 0.013 | 0.010 | 19.8 | 33.60 | 2.50 | ن.ب.0.35 |
| H08Cr20Ni10Ti | ER321 | 0.06 | 0.45 | 1.50 | 0.022 | 0.010 | 20.8 | 9.80 | (تاي9 × سي-1)0 | |
| H08Cr21Ni10Nb | ER347 | 0.055 | 0.48 | 1.80 | 0.021 | 0.008 | 20.8 | 9.80 | Nb1 × C-1.0 | |
| H12Cr26Ni21 | ER310 | 0.09 | 0.50 | 1.66 | 0.020 | 0.010 | 25.5 | 20.50 | ||
| H02Cr20Ni25Mo4Cu | ER385 | 0.020 | 0.30 | 1.50 | 0.018 | 0.010 | 20.2 | 24.80 | 4.80 | كيو 180 |
| H03Cr22Ni9Mo3N | ER2209 | 0.022 | 0.50 | 0.90 | 0.020 | 0.010 | 22.5 | 8.80 | 3.30 | N0.08-0.20 |
| H04Cr25Ni5Mo3Cu2N | ER2553 | 0.027 | 0.50 | 1.00 | 0.025 | 0.015 | 24.8 | 5.50 | 3.20 | N0.1-0.25 |
| H15Cr29Ni9 | ER312 | 0.09 | 0.38 | 1.50 | 0.022 | 0.010 | 29.5 | 8.50 | ||
| H03Cr24Ni13MoL | ER309LMo | 0.023 | 0.45 | 1.50 | 0.022 | 0.010 | 23.8 | 13.20 | 2.20 | |
| H05Cr17Ni4Cu4Nb | ER630 | 0.04 | 0.39 | 0.50 | 0.022 | 0.010 | 16.5 | 4.80 | Cu;3 Nb؛0.28 | |
| H08Cr26Ni5Mo2 | ER453s | 0.06 | 0.30 | 0.40 | 0.022 | 0.010 | 25.8 | 4.80 | 2.10 | |
| H08Cr21Ni10Mn6 | 0.06 | 0.35 | 5.50 | 0.022 | 0.010 | 20.8 | 9.80 | |||
| H05Cr22Ni11Mn6Mo3VN | ER209 | 0.04 | 0.40 | 4.50 | 0.022 | 0.010 | 21.5 | 10.80 | 2.20 | N؛0.20 فولت0.18 |
