تفاصيل المنتج
Place of Origin: Shanghai, China
اسم العلامة التجارية: TANKII
إصدار الشهادات: ISO9001: 2008
Model Number: cuni 20
شروط الدفع والشحن
Minimum Order Quantity: 20kg
الأسعار: قابل للتفاوض
Packaging Details: Spool, carton, plywod case with plastic film as clients required
Delivery Time: 15-28DAYS
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 300+TON+MONTH
material: |
Constantan/ Manganin |
Wire Chemical: |
cuni |
type: |
Round Insulated Wire |
Insulation Material: |
Polyesterimide, Polyester |
application: |
Electric Instrument, Electric Part Coil and so on |
class: |
130,155,180,200,220 |
material: |
Constantan/ Manganin |
Wire Chemical: |
cuni |
type: |
Round Insulated Wire |
Insulation Material: |
Polyesterimide, Polyester |
application: |
Electric Instrument, Electric Part Coil and so on |
class: |
130,155,180,200,220 |

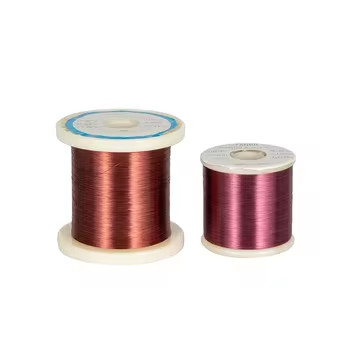

Thermal Class 180 Size Supply 0.40/0.45/0.50 mm Polyesterimide Enameled Round Aluminium Wire
| Product Name | Enameled Wire |
| Conductor | Copper |
| Dimension | 0.06-10mm |
| Thermal Class (ºC) | 120(Class E);180 (Class H);200 (Class C);220 (Class C+); 240(Class HC) |
| Insulation thickness | G1;G2;G3;G4 |
| Certificate | UL |
| Standard | IEC,NEMA,GB,JIS |
| Packing | 30kg-150kg ply-wood spool(250*400/250*500/250*600) |
| Application | Transformer; motor;generator; modern instrument; welding machine and so on |
| Red,Green,Yellow,Black,Blue,Nature etc. |
| Insulation-enamelled Name | Thermal LevelºC (working time 2000h) |
Code Name | GB Code | ANSI. TYPE |
| Polyurethane enamelled wire | 130 | UEW | QA | MW75C |
| Polyester enamelled wire | 155 | PEW | QZ | MW5C |
| Polyester-imide enamelled wire | 180 | EIW | QZY | MW30C |
| Polyester-imide and polyamide-imide double coated enameled wire | 200 | EIWH (DFWF) |
QZY/XY | MW35C |
| Polyamide-imide enamelled wire | 220 | AIW | QXY | MW81C |
| roduct Name | Copper Nickel Alloy CuNi Wire |
| Product Description | Copper Nickel Alloy is mainly made of copper and nickel. The copper and nickel can be melted together no matter what percentage. Normally the resistivity of CuNi alloy will be higher if the Nickel content is larger than Copper content. From CuNi6 to CuNi44, the resistivity is from 0.1μΩm to 0.49μΩm. That will help the resistor manufacture choosing the most suitable alloy wire. |
| Product Features | By the way, the Copper Nickel wire is easy to be welded and easy to be fabricated, so it can be made into many forms and widely used in all areas. |
