تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: Tankii
إصدار الشهادات: ISO 9001
رقم الموديل: Ni200، Ni201
شروط الدفع والشحن
الحد الأدنى لكمية: 10 كجم
الأسعار: قابل للتفاوض
تفاصيل التغليف: التخزين المؤقت
وقت التسليم: 15-20days
شروط الدفع: تي/تي
القدرة على العرض: 500 طن / سنة

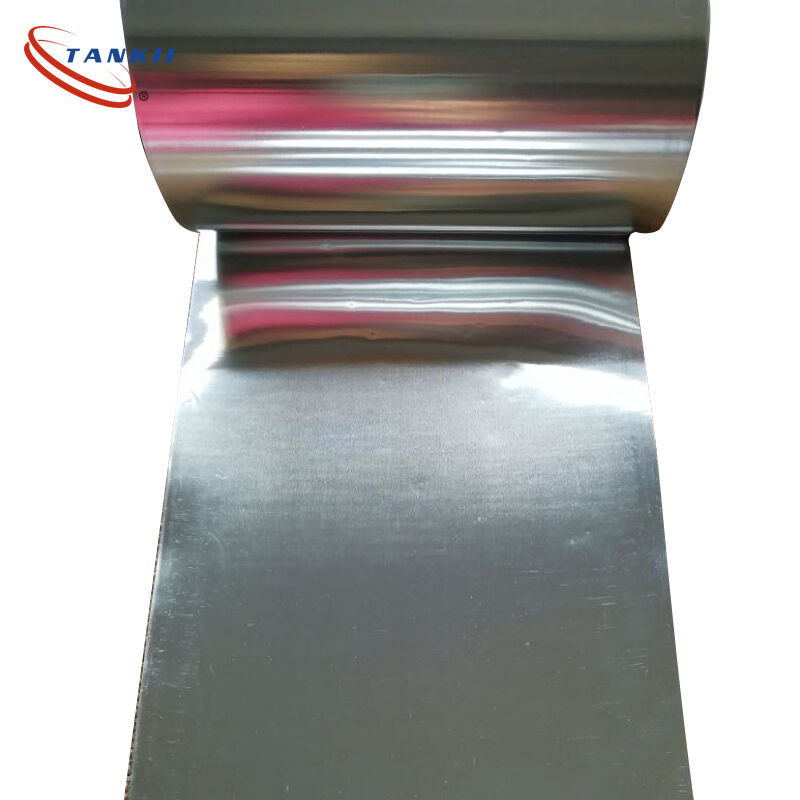

Pure Nickel Foil For The Electronic Industry
General Description
Commercially wrought Nickel 200 ( UNS N02200) , a grade of pure nickel contains 99.2% nickel, has excellent mechanical properties, magnetic properties, high thermal, electrical conductivity and excellent resistance to many corrosive environment. Nickel 200 is useful in any environment below 600ºF(315ºC). It has highly resistance to neutral and alkaline salt solutions. Nickel 200 also has low corrosion rates in neutral and distilled water.
The applications of pure nickel includes food processing equipment, magnetostrictive devices and rechargeable batteries, computers, cellular Phone, power tools, camcorders and so on.
Chemical Composition
| Alloy | Ni% | Mn% | Fe% | Si% | Cu% | C% | S% |
| Nickel 200 | Min 99.2 | Max 0.35 | Max 0.4 | Max 0.35 | Max 0.25 | Max 0.15 | Max 0.01 |
Physical Data
| Density | 8.89g/cm3 |
| Specific Heat | 0.109(456 J/kg.ºC) |
| Electrical Resistivity | 0.096×10-6ohm.m |
| Melting Point | 1435-1446ºC |
| Thermal Conductivity | 70.2 W/m-K |
| Mean Coeff Thermal Expansion | 13.3×10-6m/m.ºC |
Typical Mechanical Properties
| Mechanical Properties | Nickel 200 |
| Tensile Strength | 462 Mpa |
| Yield Strength | 148 Mpa |
| Elongation | 47% |
Our Production Standard
| Bar | Forging | Pipe | Sheet/Strip | Wire | |
| ASTM | ASTM B160 | ASTM B564 | ASTM B161/B163/B725/B751 | AMS B162 | ASTM B166 |
