تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: TANKII
إصدار الشهادات: ISO9001
رقم الموديل: 6j40
شروط الدفع والشحن
الحد الأدنى لكمية: 20 كجم
الأسعار: قابل للتفاوض
وقت التسليم: 15-20 يوما
القدرة على العرض: 300 طن / سنة

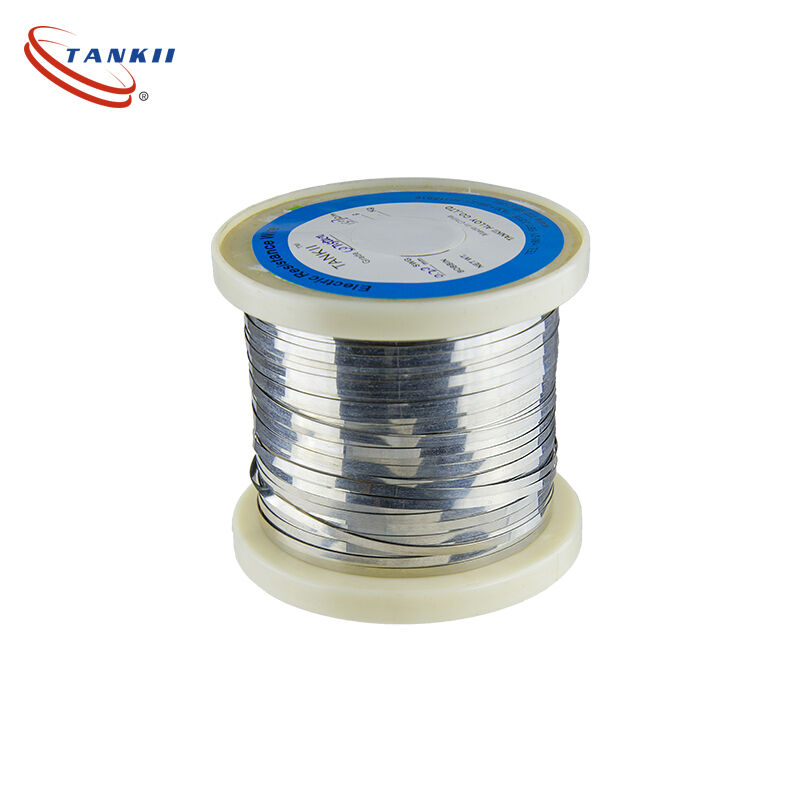

Constantan Eureca Wire / Flat Wire
Product Description
Constantan Wire with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". Constantan also shows better corrosion resistance than the man ganins. Uses tend to be restricted to ac circuits.
Constantan wire is also the negative element of the type J thermocouple with Iron being the positive; type J thermocouples are used in heat treating applications. Also, it is the negative element of the type T thermocouple with OFHC Copper the positive; type T thermocouples are used at cryogenic temperatures.
Chemical Content, %
Ni |
Mn |
Fe |
Si |
Cu |
Other |
ROHS Directive |
|||
Cd |
Pb |
Hg |
Cr |
||||||
44 |
1.50% |
0.5 |
- |
Bal |
- |
ND |
ND |
ND |
ND |
Mechanical Properties
Max Continuous Service Temp |
400ºC |
Resisivity at 20ºC |
0.49±5%ohm mm2/m |
Density |
8.9 g/cm3 |
Thermal Conductivity |
-6(Max) |
Melting Point |
1280ºC |
Tensile Strength,N/mm2 Annealed,Soft |
340~535 Mpa |
Tensile Strength,N/mm3 Cold Rolled |
680~1070 Mpa |
Elongation(anneal) |
25%(Min) |
Elongation(cold rolled) |
≥Min)2%(Min) |
EMF vs Cu, μV/ºC (0~100ºC) |
-43 |
Micrographic Structure |
austenite |
Magnetic Property |
Non |
