تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: Tankii
إصدار الشهادات: ISO9001
رقم الموديل: سلك مطلي بالمينا
شروط الدفع والشحن
الحد الأدنى لكمية: 10 كجم
الأسعار: قابل للتفاوض
تفاصيل التغليف: علبة كرتون
وقت التسليم: 15-25days
شروط الدفع: خطاب الاعتماد، تي/تي، ويسترن يونيون
القدرة على العرض: 100 طن في السنة
رقم الموديل: |
النيليوم 80Cr20 المسمر |
مادة الموصل: |
ني 80 كر 20 |
المواد العازلة: |
باي، بي آي، بي |
القطر: |
0.015 ملم -8 ملم |
درجة حرارة: |
130/155/180/200/220/240 |
طلب: |
فوق ، التدفئة |
شكل المادة: |
دائري |
إصدار الشهادات: |
ISO9001, CE, CCC, RoHS |
رقم الموديل: |
النيليوم 80Cr20 المسمر |
مادة الموصل: |
ني 80 كر 20 |
المواد العازلة: |
باي، بي آي، بي |
القطر: |
0.015 ملم -8 ملم |
درجة حرارة: |
130/155/180/200/220/240 |
طلب: |
فوق ، التدفئة |
شكل المادة: |
دائري |
إصدار الشهادات: |
ISO9001, CE, CCC, RoHS |

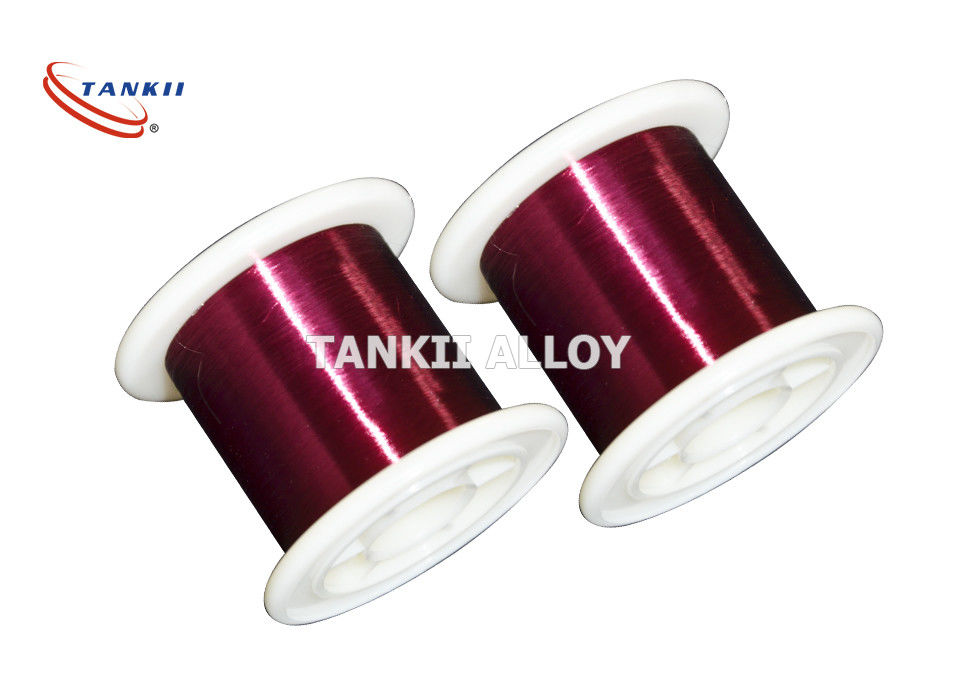

Enameled wire Ni80Cr20 NiCr8020 wire with good insulation performance
Product Description
These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.
| Insulation-enamelled Name | Thermal LevelºC (working time 2000h) |
Code Name | GB Code | ANSI. TYPE |
| Polyurethane enamelled wire | 130 | UEW | QA | MW75C |
| Polyester enamelled wire | 155 | PEW | QZ | MW5C |
| Polyester-imide enamelled wire | 180 | EIW | QZY | MW30C |
| Polyester-imide and polyamide-imide double coated enameled wire | 200 | EIWH (DFWF) |
QZY/XY | MW35C |
| Polyamide-imide enamelled wire | 220 | AIW | QXY | MW81C |
4. Distinctive features of Karma resistance wire
1) Starting with Nickel Chromium electric heat wire Class 1, we replaced some of the Ni with
Al and other elements, and thus achieved a precision resistance material with improved
resistance temperature coefficient and heat electromotive force against copper.
With the addition of Al, we have succeeded in making volume resistivity 1.2 times greater
than Nickel Chromium electric heat wire Class 1 and the tensile strength 1.3 times greater.
2) The secondary temperature coefficient β of Karmalloy wire KMW is very small, - 0.03 × 10-6/ K2,
and the resistance temperature curve turns out to be almost a straight line within a wide
temperature range.
Therefore, the temperature coefficient is set to be the average temperature coefficient between
23 ~ 53 °C, but 1 × 10-6/K, the average temperature coefficient between 0 ~ 100 °C, also may
be adopted for the temperature coefficient.
3) Electromotive force against copper between 1 ~ 100 °C is also small, below + 2 μV/K, and
exhibits excellent stability over a period of many years.
4) If this is to be used as a precision resistance material, low temperature heat treatment is
required to eliminate processing distortions just as in the case of Manganin wire CMW.
